S6-7018810/PACK10-RE Cylinder kit + exhaust 77cc Stage6 BigRacing Minarelli AM6 red

Stage6 is dedicated to the development of high-performance tuning components and is constantly tackling new challenges. This is why it is now also launching cylinders and entire engine packages with matching tuning components for manual mopeds. Here for the Minarelli AM6: Stage6 BigRacing 77cc Engine Cylinder + Exhaust Package for the Minarelli AM6, red .

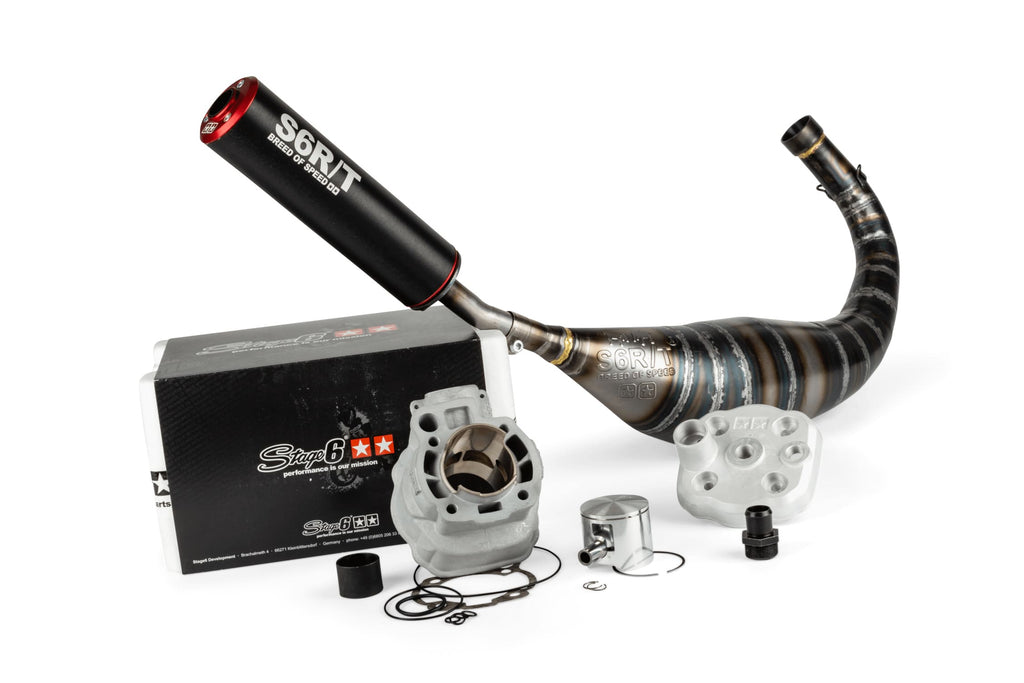

The package contains:

• Stage6 77cc cylinder, 50mm bore, alloy, with 5 relief ports and split exhaust
• Vertex 1-ring piston, d. 50mm
• High compression, one-piece, aluminum cylinder head
• Gasket set (foot and head gaskets)
• Stage6 R/T 80 - 90cc low-mount exhaust system
• Venturi connection sleeve - internal diameter 32 mm / external diameter 35 mm / height 42 mm
• Red Aluminum Rear Silencer - Internal D. 23mm / External D. 60mm / Length 229mm

Stage6 Big Racing cylinders are racing cylinders specially developed for manual mopeds and supermotos. This innovative and highly successful cylinder delivers a massive performance boost, especially when combined with the included Stage6 R/T 80-90cc exhaust.

Aesthetically, the BigRacing appears inconspicuous, but looks can be deceiving. The cylinder is an original "Big Bore" cylinder, meaning it's not based on a standard cylinder that was simply bolted on, but was designed as a true Big Bore kit, complete with overflow ports and a large exhaust to support the cylinder's extra power. From the outside, the cylinder is a replica of the original cylinder with the 49cc symbol stamped on it; but don't worry, it's clearly a 77cc cylinder.

Installation is extremely simple, especially since no milling work is required on the engine block. The squish edge is preset to a value optimized for the respective engine type.

In terms of performance, the BigRacing is convincing across the board: on our P4 dyno we measured a whopping 23 hp and 13 Nm ; a standard setup was used (24 mm carburetor, original ignition, racing exhaust, etc.)

The cylinder timing is relatively low (190° - 125°), the cooling volume is quite large and the piston is of extremely high quality (Vertex): all factors that make the cylinder very reliable and robust, provided the tuning and settings are correct.

Note: It is recommended to use "long" cylinder head nuts to properly tighten the head. It is recommended to use a reinforced crankshaft with a standard stroke.

The already very powerful cylinder is complemented and supported by a Stage6 R/T 80-90cc Minarelli AM6 exhaust system , a high-end exhaust specially designed for the tuned Minarelli AM6 models.

This is a classic racing exhaust made of carefully hand-welded sheet steel with a high-quality rear muffler, shown here in red (other colors available). As is usual with high-end systems, the exhaust comes in a racing finish, meaning it's unpainted and untreated.

The exhaust guarantees maximum power at all revs and was specifically designed for powerful 80 to 90cc engines. There's not much more you can do when tuning 2-strokes, so if you want to maximize the power of your transmission, this is the exhaust that makes it possible.

WITHOUT ROAD APPROVAL
