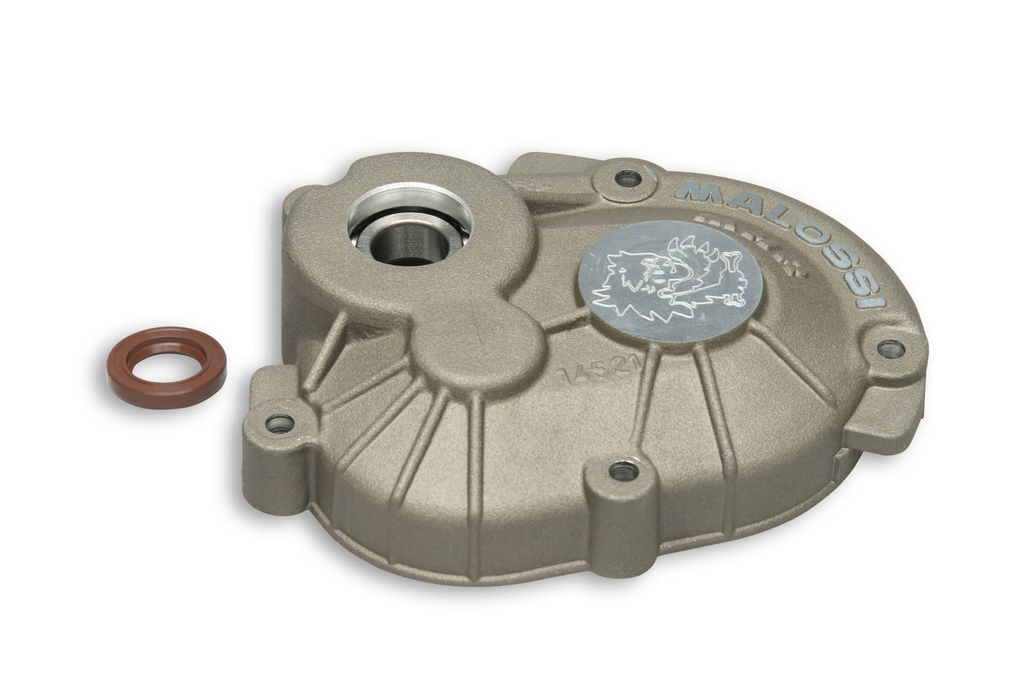

2514603 roller gear crankcase mhr team gilera runner purejet 50 2t lc 2006->

Malossi is pleased to present two new gear covers for scooters and Piaggio 50 cc engines, designed for competitions and for sporty customization of the standard vehicle.

Malossi, in a complete revision of the TRANSMISSION organs, has drastically reduced friction, replacing the original die-cast crankcase with sliding friction movements, with two gravity-cast crankcases, equipped with special bearings.

These new crankcases, machined with super-precise machine tools, robust and lightweight, are able to withstand the extremely high workloads typical of competitions.

Perfectly interchangeable with the originals and complete with all accessories, the Roller Crankcases allow you to reduce friction by 4% in the 2514521 MHR version and by 6% in the 2514603 MHR TEAM version. These latter crankcases, in particular, require the assembly of the Roller Gear Malossi secondary gears:

Art. 2514521: MHR version combinable with Malossi and original secondary gears

Art. 2514603: MHR TEAM version to be combined with Malossi second roller gear

Technical Features and Components

Reinforced gear cases in primary silicon-aluminium alloy, gravity cast, hardened and tempered.

Secondary shaft seats enlarged to accommodate 2 bearings.

No. 2 special roller bearings.

No. 1 heavy duty ball bearing.

No. 1 oil seal ring.

The Roller Crankcase, Piaggio II series, are alongside the gear cases for horizontal Minarelli Yamaha 50 cc engines present in the Malossi catalogue and offer the same technologies and characteristics of smoothness and robustness.

Products reserved exclusively for competitions in places specially designed for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use

Compatibility Table

APRILIA SCARABEO 50 4T (PIAGGIO C373M)

APRILIA SR 50 2T LC EURO 4 (PIAGGIO CA81M) - -

APRILIA SR (CARB.) 50 2T LC 2004-> (PIAGGIO) - -

APRILIA SR R (CARB.) 50 2T LC (PIAGGIO) - -

APRILIA SR STREET 50 2T LC EURO 2 - -

DERBI GP1 50 2T LC - -

DERBI GP1 OPEN 50 2T LC - -

DERBI GP1 REVOLUTION 50 2T LC - -

GILERA RUNNER 50 2T LC - -

GILERA RUNNER SP 50 2T LC <-2005 - - GILERA RUNNER SP 50 2T LC 2006-> (C451M) - -

PIAGGIO NRG EXTREME 50 2T LC - -

PIAGGIO NRG MC2 50 2T LC 1998-> - -

PIAGGIO NRG MC3 DD 50 2T LC - -

PIAGGIO NRG POWER 50 2T LC EURO 4 2018-> (CA71M) - -

PIAGGIO NRG POWER DD 50 2T LC - -

PIAGGIO ZIP SP 50 2T LC 2001-> - -

PIAGGIO FREE 50 2T - -

GILERA STALKER 50 2T - -

PIAGGIO NRG MC3 DT 50 2T - -

PIAGGIO TYPHOON 50 2T 2007->2010 - -

PIAGGIO NRG EXTREME 50 2T - -

GILERA TYPHOON X 50 2T - -

PIAGGIO ZIP 50 2T 2000-> - -

GILERA ICE 50 2T - -

PIAGGIO NRG POWER DT 50 2T (C453M) - -

VESPA ET2 50 2T 2000-> - -

VESPA S 50 2T EURO 2 (C381M) - -

VESPA SPRINT 50 2T EURO 2 - -

VESPA PRIMAVERA 50 2T EURO 2 (C533M) - -

VESPA LX 50 2T - -

PIAGGIO FLY 50 2T - -

PIAGGIO DIESIS 50 2T - -

ITALJET JETSET 50 2T - -

DERBI ATLANTIS - BULLET 50 2T 2003-> - -

APRILIA MOJITO CUSTOM 50 2T - -

GILERA RUNNER PUREJET 50 2T LC <-2005 - - PIAGGIO NRG POWER PUREJET 50 2T LC - - GILERA RUNNER PUREJET 50 2T LC 2006-> - -

APRILIA SR DITECH GP1 50 2T LC (PIAGGIO C361M) - -

APRILIA SR R FACTORY 50 2T LC (PIAGGIO C361M) - -

PIAGGIO NRG MC3 PUREJET 50 2T LC - -

VESPA LX 4V 50 4T EURO 2 - -

VESPA S 4V 50 4T EURO 2 (C386M) - -

PIAGGIO ZIP 50 4T - -

VESPA ET4 50 4T - -

VESPA LX 50 4T - -

VESPA LX 50 2T

VESPA LX 50 4T

VESPA LX 4V 50 4T euro 2

VESPA Primavera 50 2T euro 2 (C533M)

VESPA S 50 2T euro 2 (C381M)

VESPA S 4V 50 4T euro 2 (C386M)

VESPA Sprint 50 2T euro 2

VESPA Sprint 50 2T euro 2

Code: 2514603

The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
